CH341A Programmer
-----------------

### Fixing high voltage bug

Early versions, prior ver. 1.7, of the cheap and popular CH341A Mini Programmer
have a nasty bug where voltage levels on data lines remain at 5V despite the
programmer being set to 3.3V with the jumper.

@ddemos1963 came out with an interesting hack to fix the issue in an efficient
and artsy way.

![](../images/hardware-ch341a-hack-1.webp)
![](../images/hardware-ch341a-hack-2.webp)

Here's what you do.

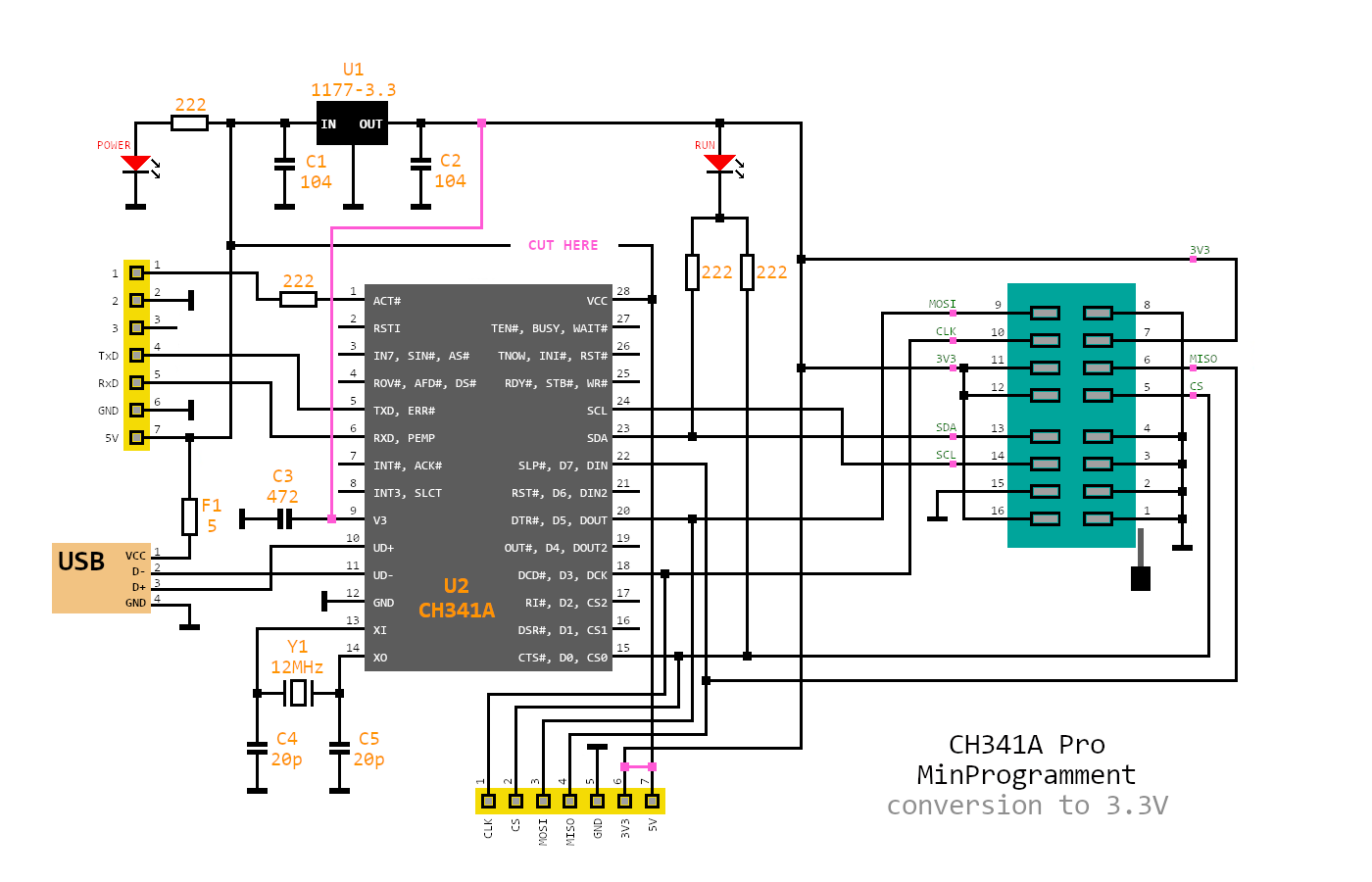

![](../images/hardware-ch341a-hack-6.png)

Sever the connection between between 5V power line and the CH341A chip.
With a sharp utility knife, cut the trace on the back of the programmer board.

![](../images/hardware-ch341a-hack-3.webp)

Connect 3.3v output leg of the voltage regulator to pin 9 of CH341A IC bridging
it to a corresponding trace at a nearby capacitor.

![](../images/hardware-ch341a-hack-4.webp)

Restore power to the chip re-routing 3.3V voltage from 3v3 pin to pin 28
of CH341A IC through 5V pin connector on the header.

![](../images/hardware-ch341a-hack-5.webp)

### Troubleshooting

```console
libusb: error [get_usbfs_fd] libusb couldn't open USB device /dev/bus/usb/001/003, errno=13
libusb: error [get_usbfs_fd] libusb requires write access to USB device nodes
```

If you get an error message like this running a programming software, you need to adjust
permissions on the USB port for that device.

Create a udev rule file

```bash
sudo vi /etc/udev/rules.d/99-ch341a-prog.rules
```

add the following content in the file:

```bash
# udev rule that sets permissions for CH341A programmer in Linux.
# Put this file in /etc/udev/rules.d and reload udev rules or reboot to install
SUBSYSTEM=="usb", ATTRS{idVendor}=="1a86", ATTRS{idProduct}=="5512", MODE="0666"
```

save the file, reload udev

```bash
sudo udevadm control --reload-rules
sudo udevadm trigger
```

then unplug the programmer and plug it back in a USB port.
